PRECISION BLDC DRIVE CONTROL

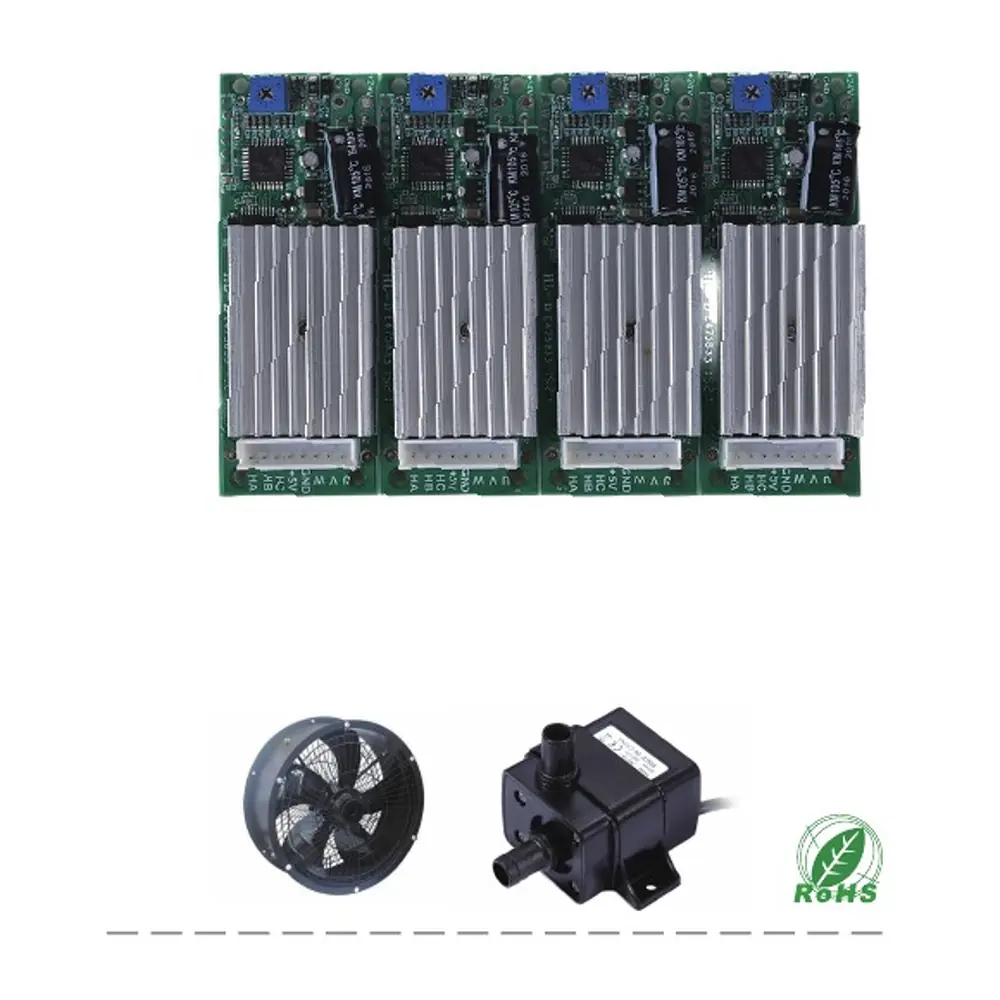

The HX_BLDC_24V3A-002 is a compact 70W brushless DC (BLDC) motor driver board designed for water pump, fan, and equipment control applications. It supports a 7–28V input voltage range and a motor speed range of 0–20000 RPM. With compact dimensions of 82 × 31 × 14, the driver board is suitable for integration into compatible BLDC water pump systems, ventilation equipment, and other motor-driven devices.
ENGINEERING REFERENCE / PRODUCT INFORMATION
Review technical parameters and product-specific application scenarios. Confirm final specifications with our engineering team.
Published technical characteristics
| Parameter | Specification |
|---|---|
| Model | HX-BLDC-24V3A-002 |
| Product Type | BLDC Motor Driver Board |
| Input Voltage | 7–28V |
| Power | 70W |
| Speed Range | 0–20000 RPM |
| Motor Type | Brushless DC (BLDC) |
| Dimensions | 82 × 31 × 14 (unit not specified) |
| Applications | Water Pumps, Fans & Equipment Control |
Use cases selected for this product
01

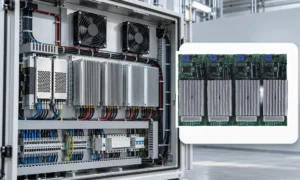

Compact 7–28V BLDC drive control for cooling fans that protect control cabinets, power electronics, and automated equipment from heat buildup.
02

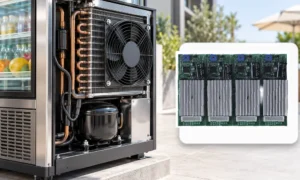

Efficient low-voltage motor control for condenser and ventilation fans used in portable refrigeration and outdoor cooling equipment.
03

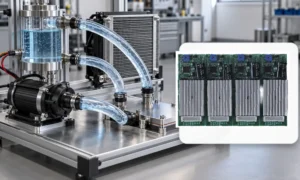

Reliable 70W BLDC drive control for compact circulation pumps in liquid-cooled machinery, power electronics, and thermal-management systems.
04

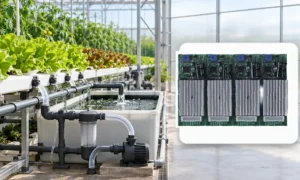

Compact BLDC pump control for nutrient-water circulation in hydroponic systems and controlled-environment agriculture.
Applications shown are specific to this product. Confirm motor compatibility and operating requirements with our engineering team.
