PRECISION BLDC DRIVE CONTROL

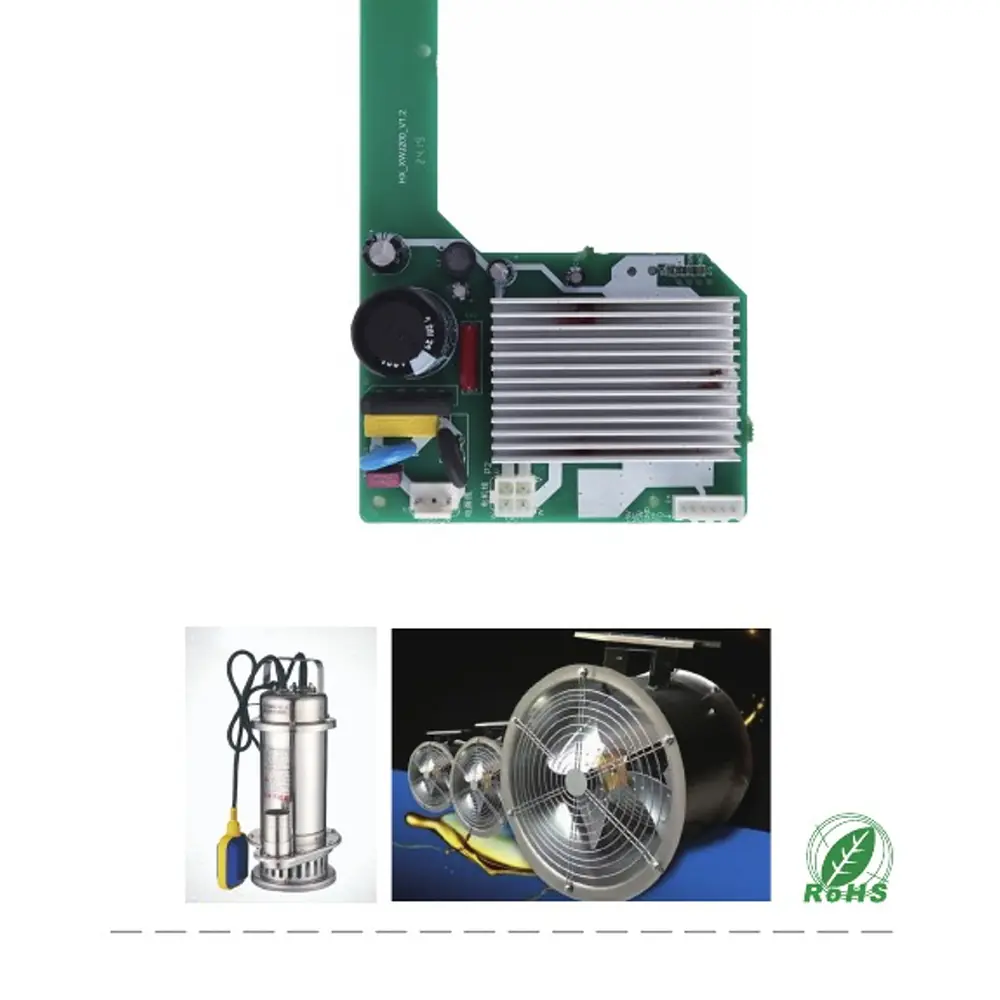

The HX_BLDC_24V3A-002 is a compact 70W brushless DC (BLDC) motor driver board designed for water pump, fan, and equipment control applications. It supports a 7–28V input voltage range and motor speeds from 0 to 20000 RPM, making it suitable for BLDC motor drive applications in ventilation, water circulation, and electrical equipment.
ENGINEERING REFERENCE / PRODUCT INFORMATION
Review technical parameters and product-specific application scenarios. Confirm final specifications with our engineering team.
Published technical characteristics
| Parameter | Specification |
|---|---|
| Model | HX_BLDC_24V3A-002 |
| Product Type | BLDC Motor Driver Board |
| Input Voltage | 7–28V |
| Power | 70W |
| Speed Range | 0–20000 RPM |
| Motor Type | Brushless DC (BLDC) |
| Dimensions | 82 × 31 × 14 (unit not specified) |
| Applications | Water Pumps, Fans & Equipment Control |
Use cases selected for this product
01
Designed for industrial machinery, the HX-BLDC-200W-V1.0 drives brushless axial fans that remove heat from equipment enclosures, heat exchangers, and production systems.
02
Suitable for commercial refrigeration systems, the controller supports condenser fans that maintain airflow across heat-exchange coils and help stabilize operating temperatures.
03

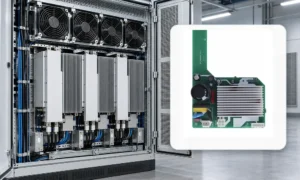

Built for power-electronics and control cabinets, the controller operates high-speed BLDC fans that cool inverters, heat sinks, and densely installed components.
04
Suitable for equipment liquid-cooling loops, the controller drives a compact BLDC circulation pump to move coolant between the reservoir, heat exchanger, and thermal load.
Applications shown are specific to this product. Confirm motor compatibility and operating requirements with our engineering team.
